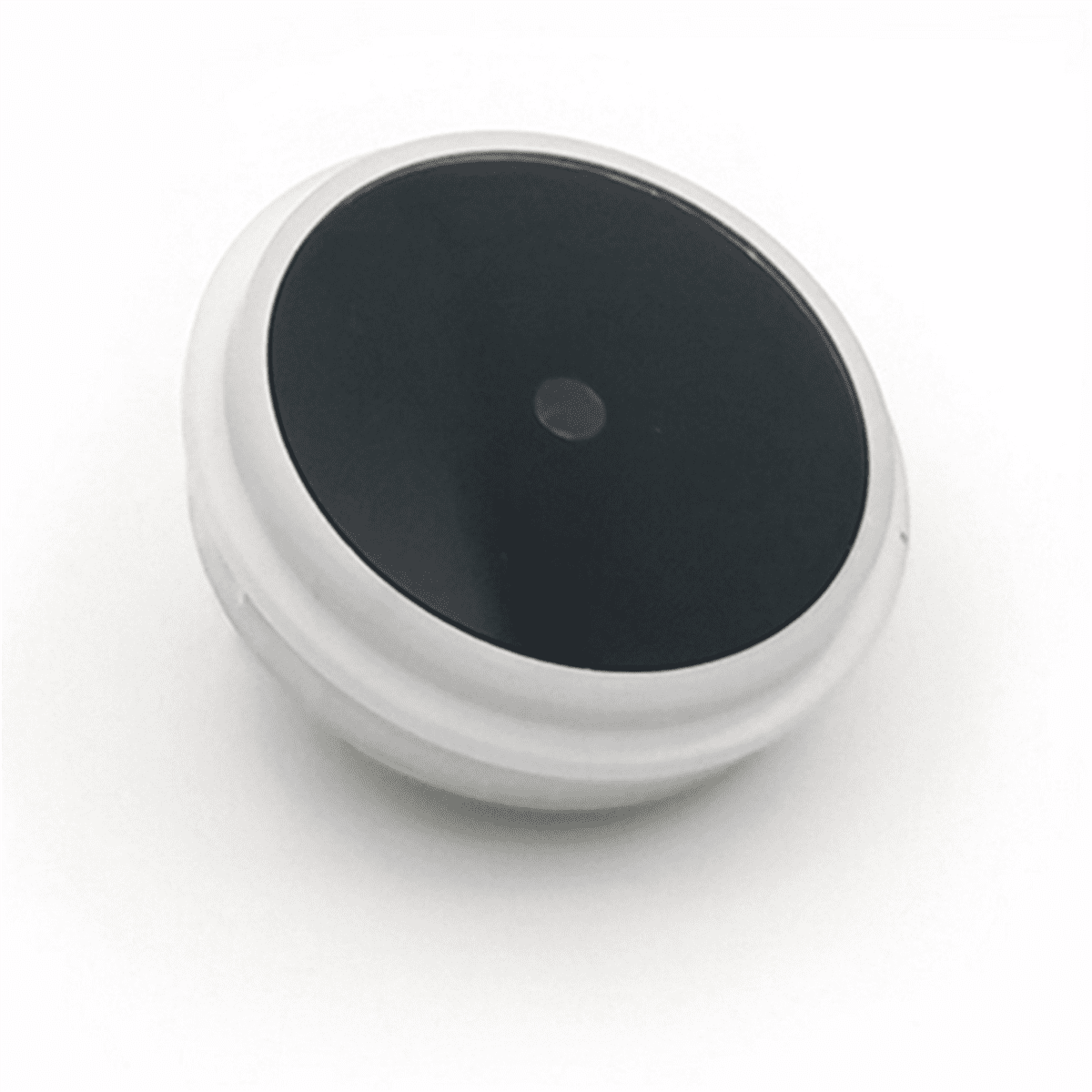

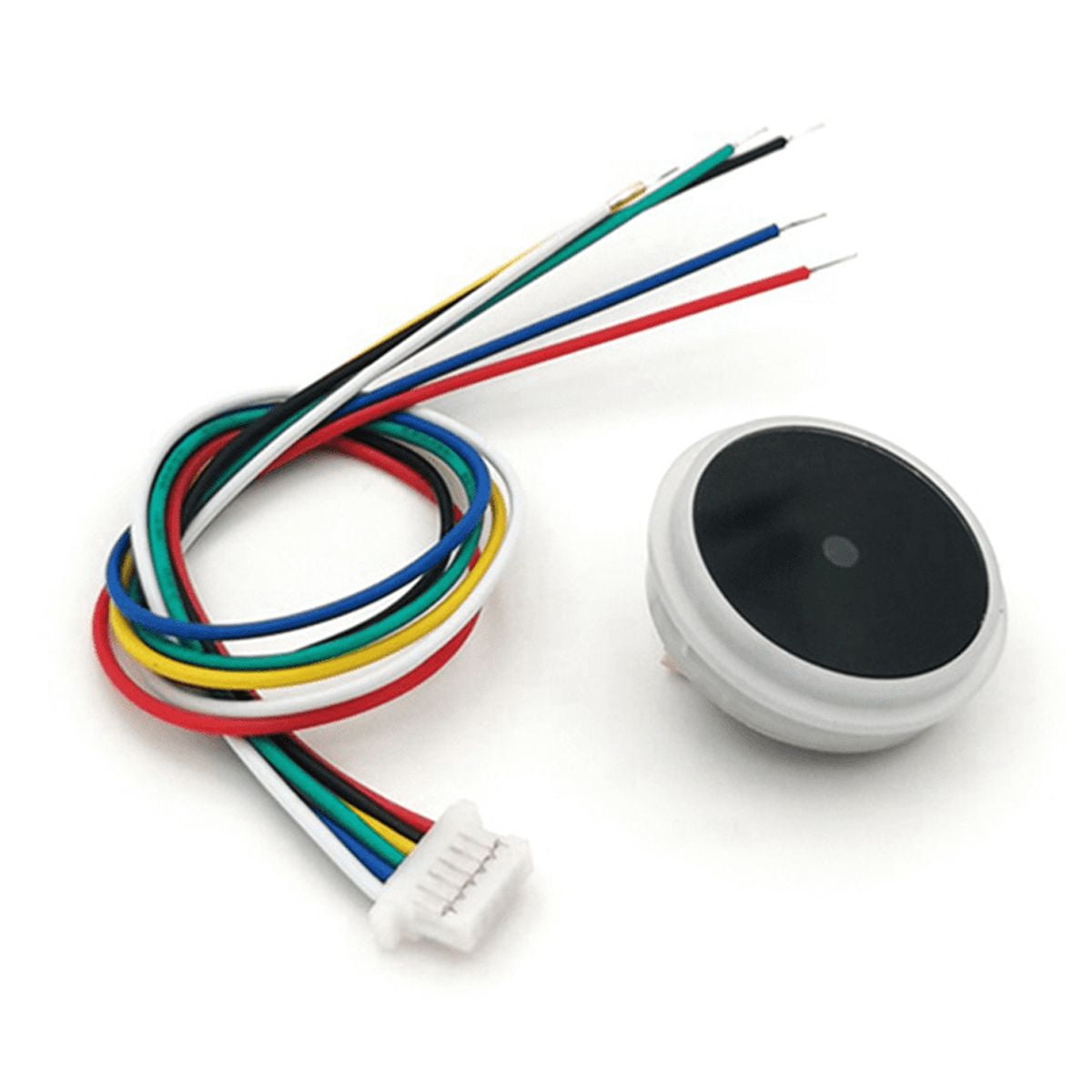

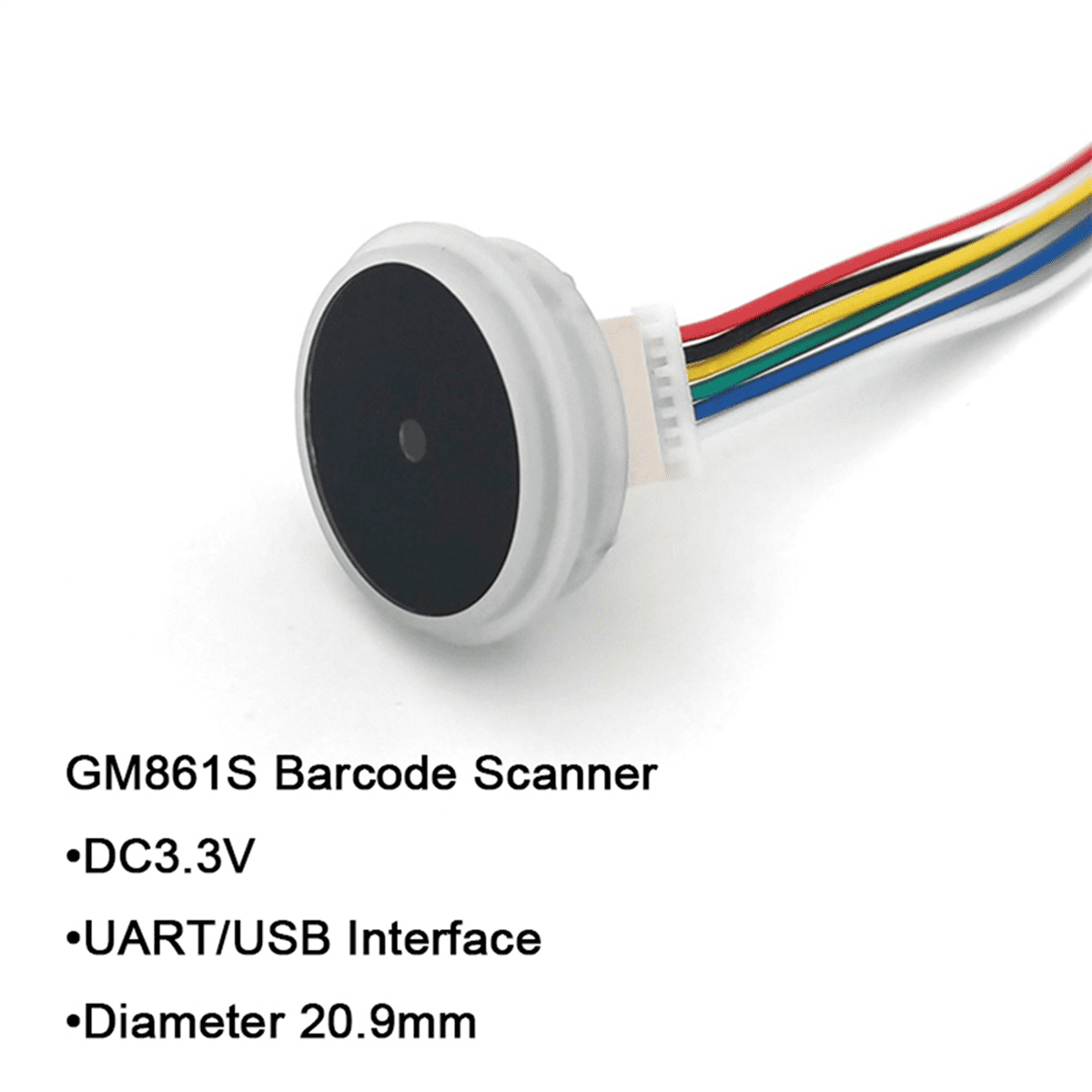

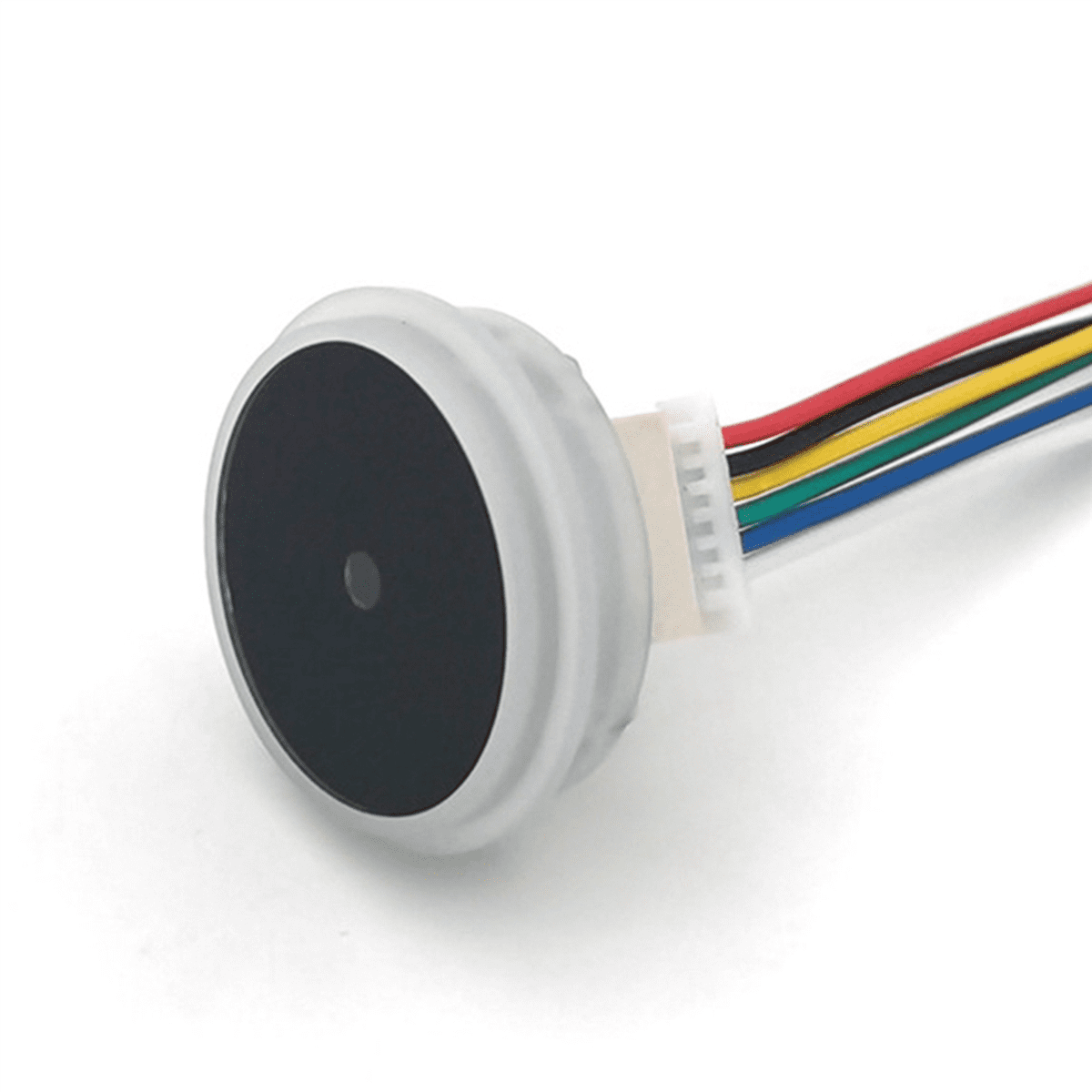

2X GM861S UART/USB Interface 1D/2D Bar Code QR Code Barcode Reader Module White Green LED
Product details
| Management number | 230595991 | Release Date | 2026/06/18 | List Price | $10.79 | Model Number | 230595991 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

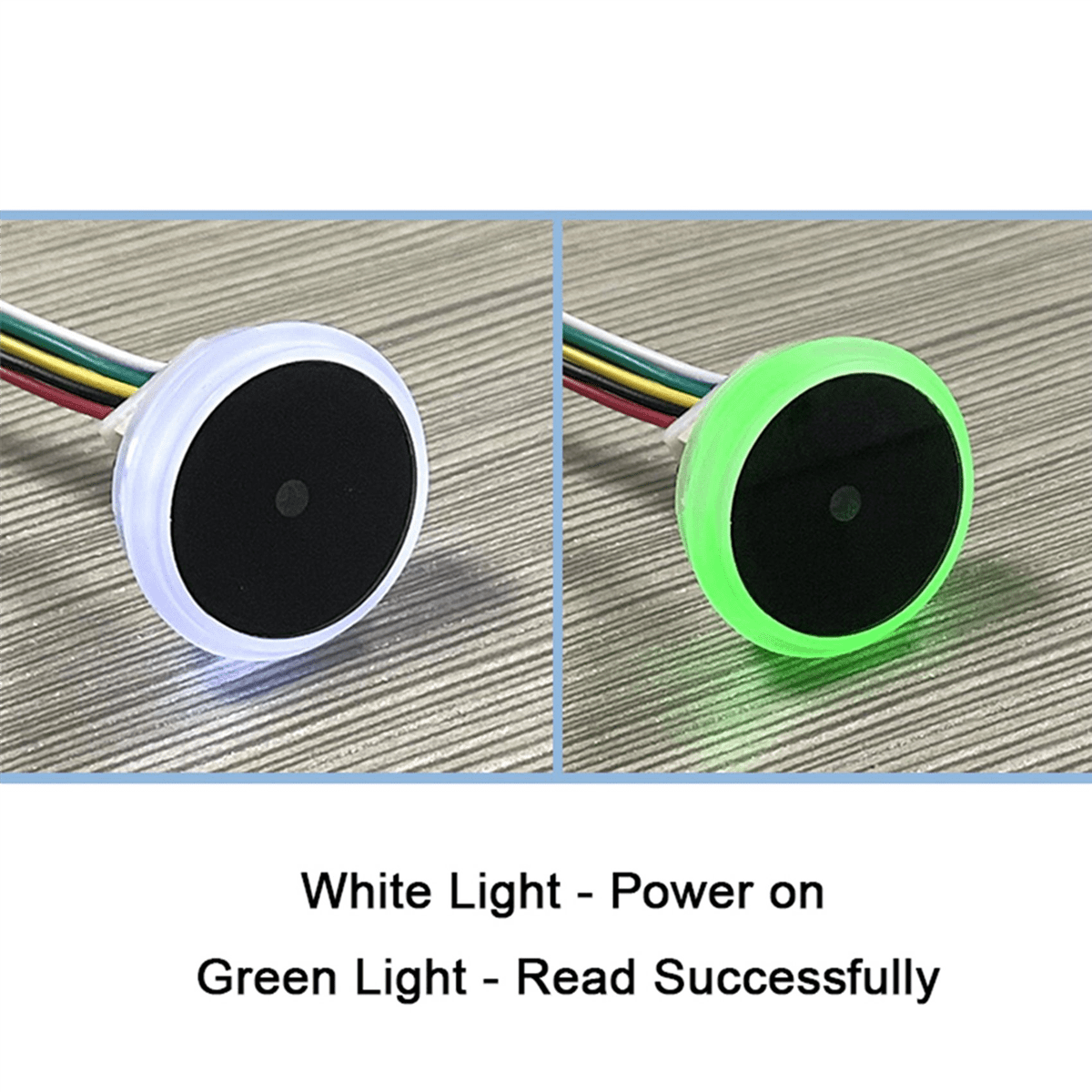

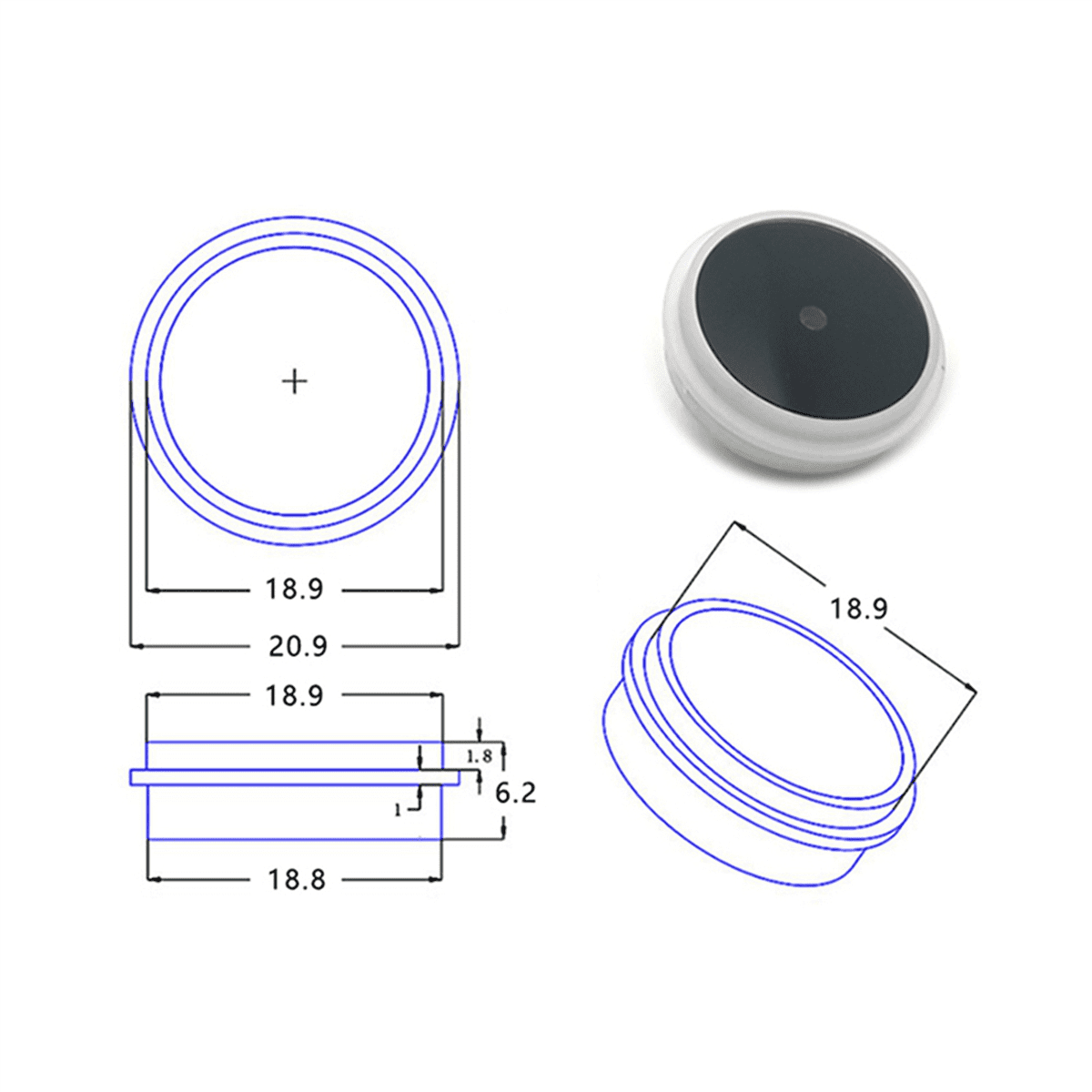

Parameter<br>Performance<br>Sensor<br>CMOS<br>Scan Mode<br>640 x 480<br>Indicator Light<br>Green lightas read successfully<br>Read Code Type<br>1D: -13, -8, UPC-A, UPC-EISSN, , CodaBar,Code 128,<br>Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial2of5,<br>Matrix2of5, Code 39,Code11, -Plessey,<br>GS1 Composite,GS1-Databar (RSS)<br>2D: QRCode, DataMatrix, PDF417<br>Accuracy of reading x :≥10mil<br>Mechanical/electrical Parameters:<br>Parameter:Performance<br>Interface:TTL-232/USB<br>Size(mm):Diameter 20.9mm Height 6.2mm<br>Weight:4g<br>Prompting mode:LED Indicator<br>OperatingVoltage:3.3V<br>Operation Current:70mA(Max)<br>Standby Current:≤6mA(Typical)<br>Startup time:≤250mS (Typical)<br>material: metal<br>Color as shown<br><br>Package Contents:<br>2 x Scan code module<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Contrast x : 25%
- Viewing Angle:67°(Horizontal)53°(Vertical)
- Reading Distance:5-30cm
- GM861S
- Scan Angle x x :Roll:360°Pitch:65°Yaw:65°
| Brand | Unbranded |
|---|---|
| Has written warranty | No |
